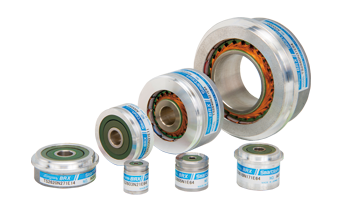

Speed & Position Sensors

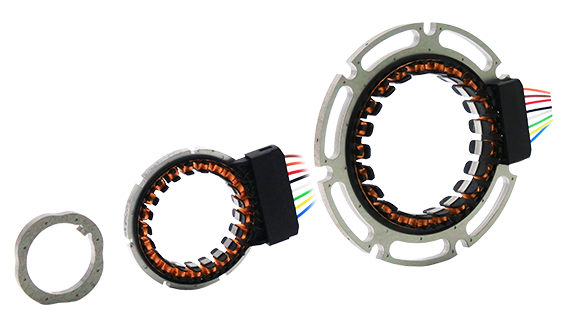

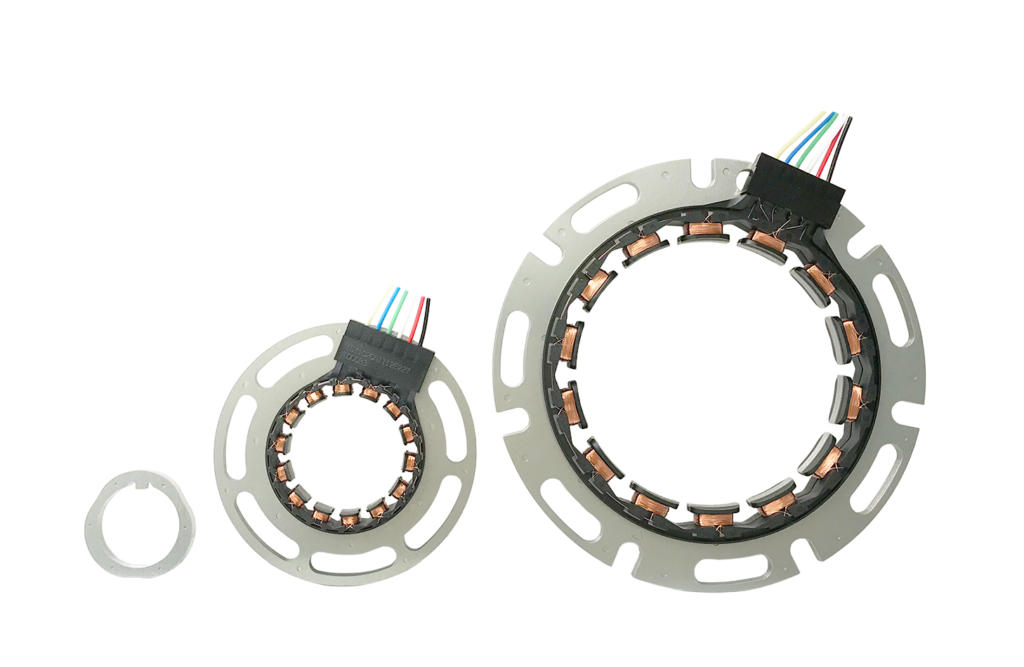

Tamagawa Singlsyn® Variable Reluctance Resolver
Features
- Rugged Variable Reluctance Design for Automotive
- Absolute Signal
- Extremely Thin Axially
- Multi-Speed Options: 1x ~ 15x +

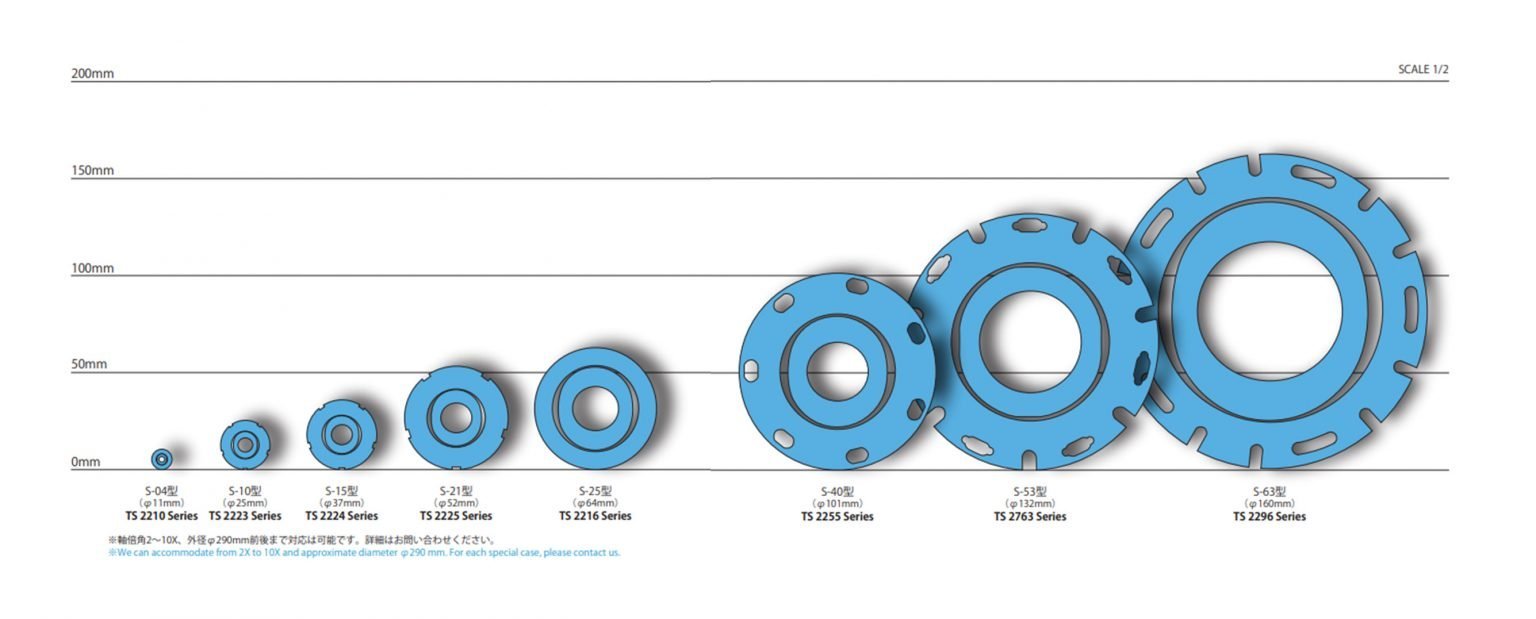

- Sizes from 11mm – 285mm O.D. +
- Wide Temperature Range: – 40° C ~ + 150° C
- Robust for Harsh Environments- Vibration: 196 m/sec2 (20G)
– Shock: 980 m/sec2 (100G)
– Humidity: 90% RH + - High Rotational Speed: 30,000 rpm
- Easily Customized for Shape or Electrical Connection
- Low Cost due to Few PartsR
Singlsyn® Variable Reluctance Resolver Catalog

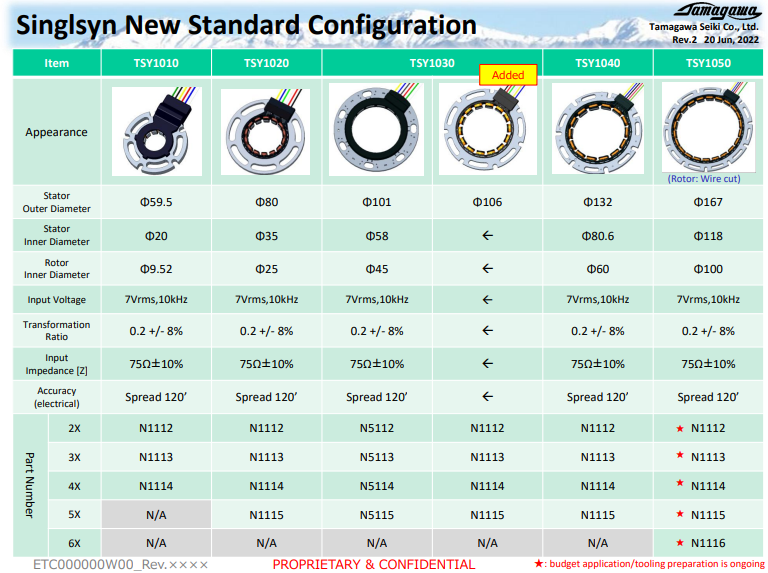

Singlsyn New Standard Configuration

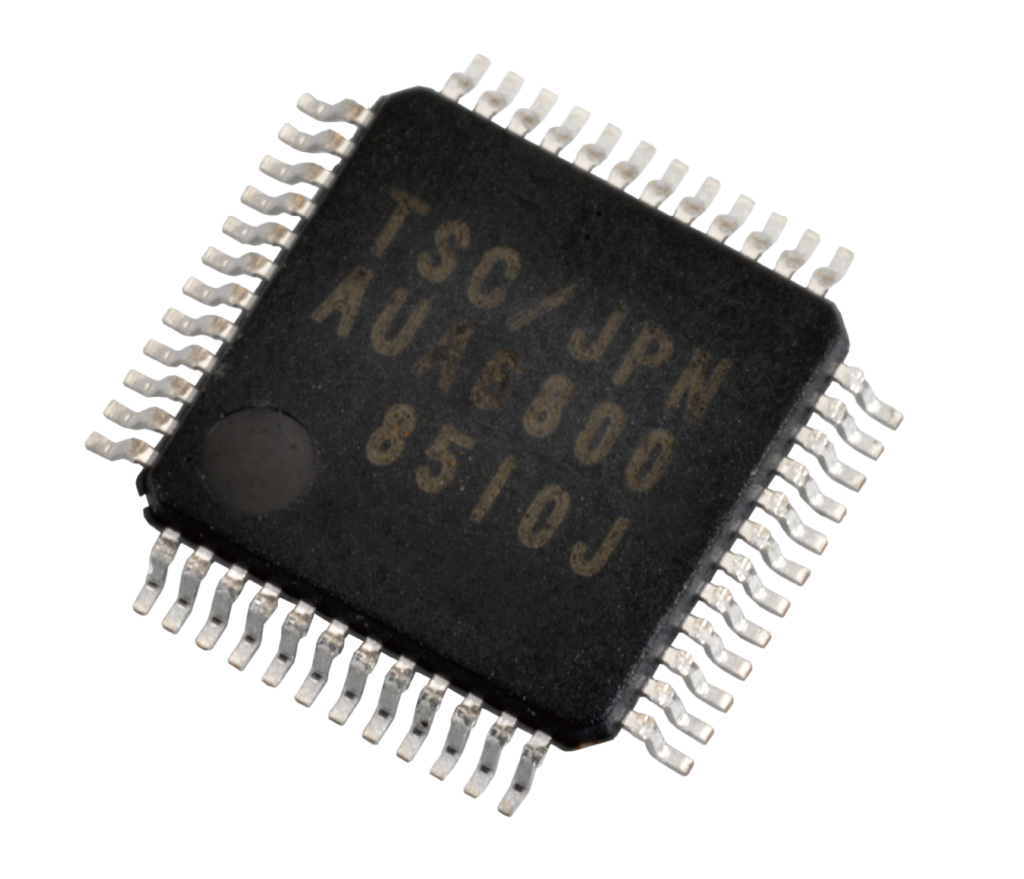

Smartcoder® Resolver Digital Converters
AU6805 Smartcoder® User’s Manual
Features
- Adopts R/D conversion based on a proven digital tracking system
- Low cost, small size and light weight
- Satisfying fail check functions
(1) Abnormality detection
Capable of detecting abnormal resolver signals, breaking of resolver signals, abnormal R/D conversion and abnormally high temperature of a IC
Capable of detecting abnormal resolver signals, breaking of resolver signals, abnormal R/D conversion and abnormally high temperature of a IC
(2) Built in self-test
Conducts a self-test on R/D conversion and abnormality detection
Conducts a self-test on R/D conversion and abnormality detection
- Realization of system/cost reduction based on all-in-one concepts
(1) Integrated with an excitation amplifier (Output current: 1 OmA rms/20mA rms)
(2) Integrated with an operation clock
- Enhancement of functions corresponding to various applications
(1) Requires no phase adjustment to excitation signals (Allowable range: Within土45゜
(2) Variable setting of controlling bandwidth (fBW) (Selectable from 7 types of fixed values or automatic adjustment)
(3) Capable of digital conversion of linear hall IC signals and R/D parallel connections to resolvers
(4) Output redundancy (Triple redundancy-Parallel/Pulse/Serial output)
Model
AU6805
Resolution
4,096（＝212）
Tracking Rate
240,000min-1 ( When fBW is fixed.)
Conversion Accuracy
±4 LSB
Max. Angular Acceleration
3,000,000 rad／sec2（When fBW is automatic adjustment.)
Settling Time
1.5ms(When input step is 180゜, and fBW is automatic adjustment.)
Output Response
±0.2°／10,000min-1
Output Form
12bit binary code Positive logic parallel+ A,B,Z + Serial 1/F
Power Requirement
+5V±10% (45mA: When the excitation amplifier is set at 10mA rms.)
Excitation Power Supply
Integrated with a constant current control method excitation amplifier (10mArms / 20mArms)
Outline
48pin LQFP（7×7), Pin to pin: 0.5mm
Operating Temperature
-40～+125℃
